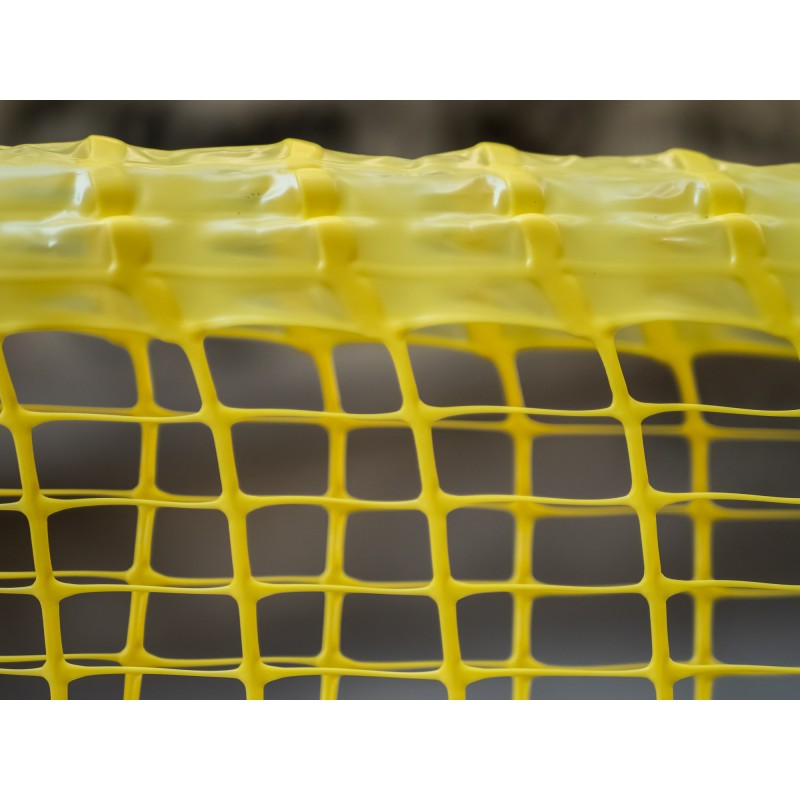

POLYGRID W60/7 E, MD Oriented Yellow

Product Data Sheet

                                              |---------------300mm-------------|

  |-------------------600mm-----|----------------------------------→

Material :                     Thermoplastic

Color        :                   Yellow (with color stability 7-8 at the range of blue)

Dimensions

Width :                         0,60m

Roll length :                 250m

Roll diameter:             60cm

Weight    :                    140gr/m² ( 84gr/linear meter)

Strength

Machine direction  :      >683 kgr/m

Width direction      :      >280 kgr/m

Resistance under the ground > 100 years

Texture : Net with flat tape in the middle 7±1 cm width where a logo may be printed in black color at height 5cm.

The underground warning nets of the Polygrid W series are produced according to the Greek public organizations and the EU standards. The thermoplastic materials used are virgin without use of other types of fillers and are checked for their resistance to chemicals or other factors that may exist under the ground. A relevant table is available below.

At most of these products is possible the printing of a logo or message of 5cm (specification) or 2,5cm. The products surface is specially processed (corona treatment) so to succeed permanent printing.

Finally the color additives are chosen so to keep and maintain the color stability for very long period.

Checks
